💳 Stripe Addon

Stripe provides subscription-aware top-up billing for Datalayer IAM credits.

Follow the Stripe setup and validation steps below.

Behavior​

  1. A Stripe customer is created for each Datalayer account.

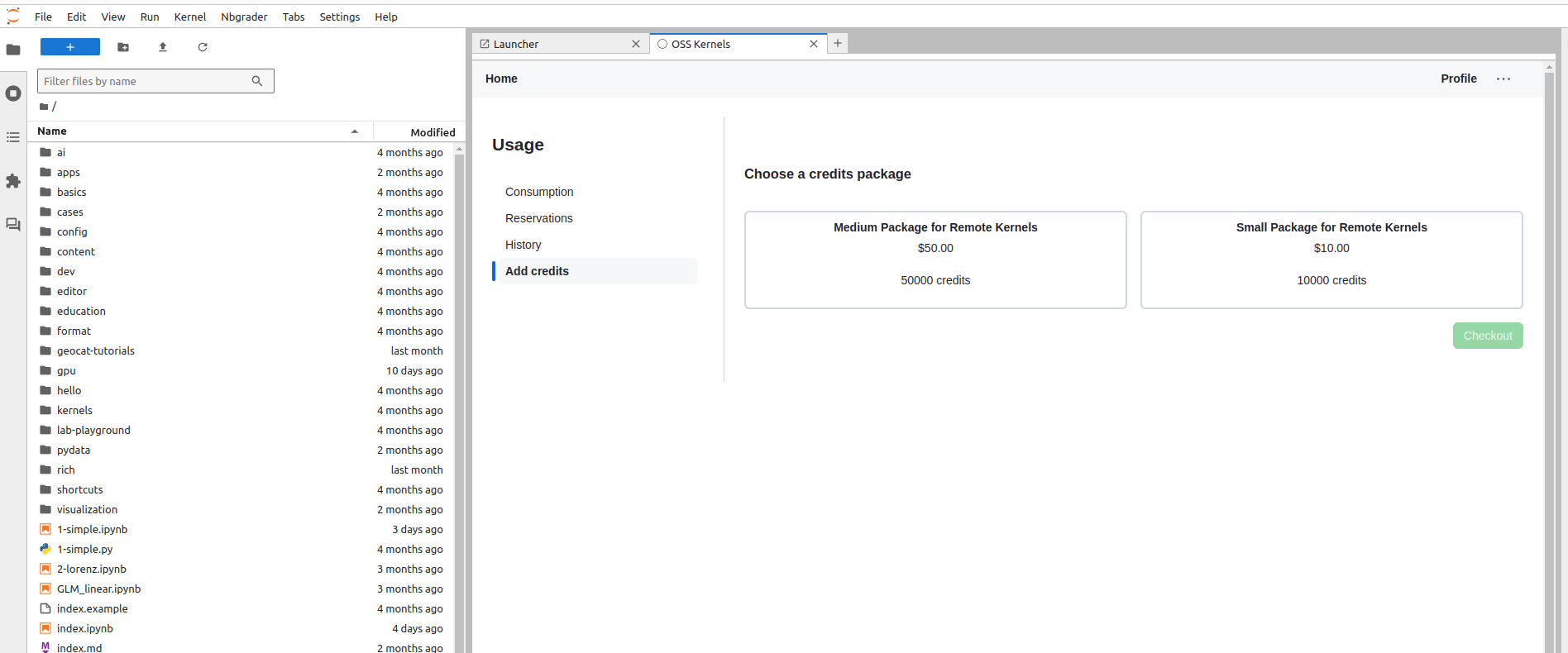

  2. Top-up prices are exposed from one configured top-up product.

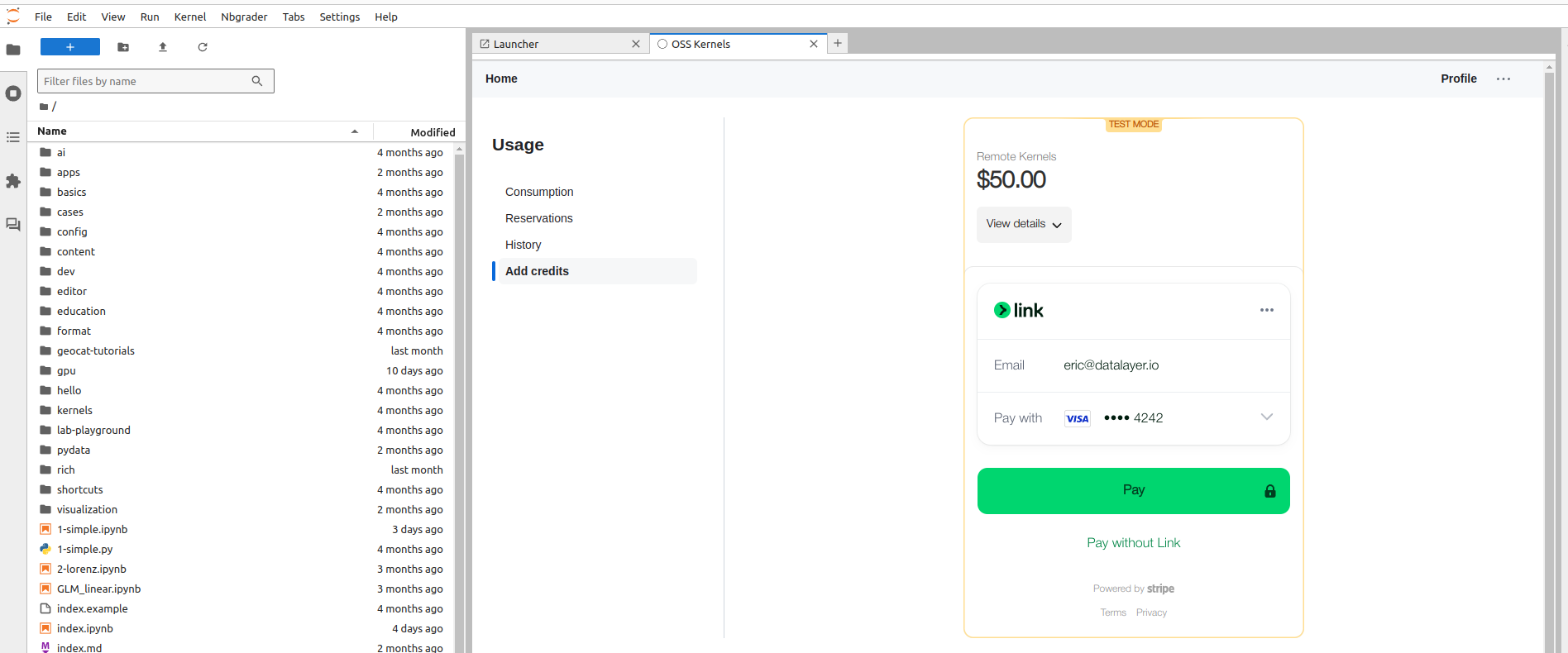

  3. Top-up PaymentIntent client secrets are created for Stripe Elements checkout.
  4. Top-up is allowed only when the user has an active monthly subscription.
  5. Credits are applied from payment_intent.succeeded webhook metadata.
  6. Subscription status snapshots are maintained from subscription and invoice webhooks.

Business Rule​

Top-up purchase requires an active monthly subscription.

API Surface​

Base path: /api/iam/stripe/v1

  1. POST /topup/payment-intent creates a PaymentIntent client secret for top-up.
  2. GET /topup/prices lists top-up prices from DATALAYER_STRIPE_TOPUP_PRODUCT_ID.
  3. POST /webhook processes Stripe webhook events.

Subscription status and cancellation endpoints are available in IAM under /api/iam/v1/subscription*.

Required Environment Variables​

Set these values on the IAM runtime:

  1. DATALAYER_STRIPE_API_KEY (sk_test_... or sk_live_...)
  2. DATALAYER_STRIPE_JS_API_KEY (pk_test_... or pk_live_...)
  3. DATALAYER_STRIPE_TOPUP_PRODUCT_ID (top-up product in the same environment)
  4. DATALAYER_STRIPE_SUBSCRIPTION_PRODUCT_ID (monthly subscription product in the same environment)
  5. DATALAYER_STRIPE_WEBHOOK_SECRET (whsec_...)
  6. DATALAYER_STRIPE_CHECKOUT_ROUTE (default: checkout)
  7. DATALAYER_STRIPE_CUST_PORTAL_ID (billing portal configuration id)
  8. DATALAYER_STRIPE_CUST_PORTAL_URL (billing portal URL)

Stripe Setup Flow​

Use the same environment (Test or Production) for every artifact below.

  1. Create API keys and set DATALAYER_STRIPE_API_KEY and DATALAYER_STRIPE_JS_API_KEY.
  2. Create top-up product Datalayer Credits with one-time package prices, and set DATALAYER_STRIPE_TOPUP_PRODUCT_ID.
  3. Create monthly subscription product(s) and set DATALAYER_STRIPE_SUBSCRIPTION_PRODUCT_ID.
  4. Configure Billing Portal and set DATALAYER_STRIPE_CUST_PORTAL_ID and DATALAYER_STRIPE_CUST_PORTAL_URL.
  5. Configure webhook endpoint https://<your-domain>/api/iam/stripe/v1/webhook and set DATALAYER_STRIPE_WEBHOOK_SECRET.

Webhook Events Used​

  1. payment_intent.succeeded
  2. customer.subscription.created
  3. customer.subscription.updated
  4. customer.subscription.deleted
  5. invoice.paid
  6. invoice.payment_failed

Validation Checklist​

  1. Without active monthly subscription, POST /api/iam/stripe/v1/topup/payment-intent returns 403.
  2. With active monthly subscription, top-up PaymentIntent creation succeeds.
  3. payment_intent.succeeded webhook returns 2xx and IAM credits increase.
  4. Failed payments do not add credits.
  5. IAM /api/iam/v1/subscription reflects webhook-driven subscription snapshots.
warning
  • Stripe retries webhook delivery with exponential backoff on non-2xx responses.
  • Webhooks can be delivered multiple times; handlers must be idempotent.
